LASER LEVELS

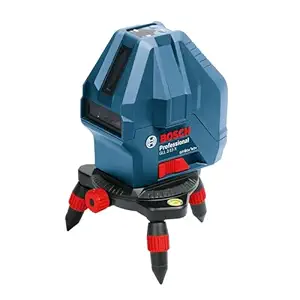

Bosch Professional GLL 3-15X Line Laser

BOSCH GLL 3-15X Line Laser :For easy decorative interior fitting applications; Working range: 15m. Maximum precision thanks to the Bosch pendulum precision system; Accuracy: ± 0.2 mm/m
Intelligent Current Management helps monitor the laser diode temperature and to maximise laser visibility without overheating. Detachable, a 360-degree rotating platform with bubble via and fine adjustment; dust and splash protection – IP 54, Compatible with Bosch BT150 Professional Tripod Tread size 5/8’’.

Technical data:

Working range-15 m
Working range with receiver-15 m
Accuracy-Horizontal laser line: ± 0.2 mm/m ; Vertical laser lines: ± 0.3 mm/m
Colour of laser line-red
Laser diode-630 – 650 nm, < 1mW
Operating temperature-
-10 – 45 °C
Storage temperature-20 – 70 °C
Laser class*2
Working range of laser points, max.-5 m (bottom)
Self-levelling range-± 3°
Levelling time-4 s
Power supply-4 x 1.5 V LR6 (AA)
Operating time (max.)-24 h
Weight, approx.-0.72 kg
Projection
3 lines + 1 plumb point
Plumb point accuracy
± 0.7 mm/m
Working range, value-15 m

Bosch Professional GLL 50-15XG Line Laser

The GLL 50-15 XG Professional delivers exceptional performance of up to 50m with LR 7 receiver. The detachable rotating platform allows precise adjustment of laser lines position while keeping the red plumb point static, permitting it ideal for tasks like drywall installation, tile laying and interior finishing.

Technical data:

Dust and splash protection-IP 54
Working range-15 m
Working range with receiver-15 m
Accuracy
Horizontal laser line: ± 0.2 mm/m ; Vertical laser lines: ± 0.3 mm/m
Colour of laser line-green
Laser diodeLine: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW
Operating temperature -10 – 45 °C
Storage temperature-
-20 – 70 °C
Laser class-2
Working range of laser points, max.-5 m (bottom)
Self-levelling range-± 3°
Levelling time-4 s
Power supply-4 x 1.5 V LR6 (AA)
Weight, approx.-0.5 kg
Color of plumb points-red
Working range, value-15 m
