Sokkia iM 55 Total Station
The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.
Sokkia iM-55 Reflectorless Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.
- 5″ Accuracy, Fast distance measurement of 0.9s..
- Reflectorless operation from 30cm to 500m.
- 50,000-point internal memory
- Upto 32GB USB Pen Drive Support
- Coaxial EDM beam and laser-ponter provide fast and accurate aiming.
- Ensures accuracy even with reflective sheets.
- IP66 dust-proof waterproof rating.
- Rugged metal chassis and heavy duty handle.
- Standard usage temperature range -20° to 60°C.
Sokkia IM 105 Total Station
With Sokkia IM-105 Total Station you get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 6,000 meter with a prism and up to 1000 meter in reflectorless mode, and a battery life of up to 28 hours. The iM-100 series intelligent measurement station is ready to be your hardest worker out in the field.
- 5″ Accuracy
- Construction and Survey Application Software On Board
- Best-in-Class Measuring Distance Feature
- Dual Side Display Control Panel.
- Reflectorless operation from 0.3m to 1000m.
- IP66 – Strong Environmental Specification against Tough Sites
- Integrated Bluetooth® technology
- Up to 28 hours of battery life in Eco mode
- Key buttons are illuminated to minimze mistakes.
- Advanced security and maintainance with TSshield™
- Internal memory has 50,000 points to record
Sokkia CX 101 Total Station
Easy-to-use, high precision, rugged and reliable. Those are Sokkia traditions. Now with the CX, Sokkia have added innovation. The CX-100 Series Total Station incorporates many new technologies while still maintaining Sokkia’s easy-to-use functionality.
- 1″ Accuracy
- Fast distance measurement of 0.9s.
- RED-tech technology reflectorless EDM
- Reflectorless operation from 30cm to 500m.
- Long-range Bluetooth technology.
- Advanced angle measurement system.
- The longest battery life – 36 hours.
- Waterproof, rugged and operator friendly.
- Advanced security and maintainance with TSshield™
- Metal chassis and heavy duty handle add ruggedness.
- Standard usage temperature range-20°to +60°C.
Sokkia Total Station (Model IM-55)
The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements […]
The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.
Sokkia iM-55 Reflectorless Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.
Feature:
- 5″ Accuracy, Fast distance measurement of 0.9s..
- Reflectorless operation from 30cm to 500m.
- 50,000-point internal memory
- Upto 32GB USB Pen Drive Support
- Coaxial EDM beam and laser-pointer provide fast and accurate aiming.
- Ensures accuracy even with reflective sheets.
- IP66 dust-proof waterproof rating.
- Rugged metal chassis and heavy duty handle.
Sokkia Total Station (Model IM-52)
Product Introduction
The Sokkia iM 52 Electronic Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.
"Repair your Sokkia Total Station IM52 with us and get it working like new. Our skilled technicians diagnose and fix issues efficiently."
The Sokkia IM 52 Total Station offers superior performance and reliability, thanks to its cutting-edge technology and robust design. It features a high-accuracy EDM that allows you to measure distances with an accuracy of up to ±(2mm + 2ppm). The dual-axis compensation feature ensures that you get accurate results, even when the instrument is not perfectly level. Additionally, the long-range Bluetooth connectivity enables you to transfer data wirelessly, saving you time and effort. The Sokkia IM 52 Total Station is a powerful tool that helps you achieve your surveying goals quickly and with high precision.
Fast and Accurate EDM
Advanced Angle Accuracy
Large Internal Memory and Onboard Software
Coaxial EDM Beam and Laser Pointer
Sokkia Total Station (Model IM-101)
Sokkia iM101 manual Total Station.
The Sokkia iM101 Manual Total Station (Intelligent Measurement Total Station) incorporates all the features you need at a cost-efficient price. Sokkia iM101 /iM105 Manual Total Station will handle your most demanding survey layout or as-built project needs.
Key Features of Sokkia IM105/Sokkkia IM101 Reflectorless Total Station
With Sokkia IM-105 Total Station /Sokkia IM-101 Total Station you get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 6,000 meter with a prism and up to 1000 meter in reflectorless mode, and a battery life of up to 28 hours. The iM-100 series intelligent measurement station is ready to be your hardest worker out in the field.
Construction and Survey Application Software Reliable All-Round Total Station
Cross-Sectional Survey
By using the MLM (Missing Line Measurement) program, the height difference between points can be calculated. Also, you can save time on reflectorless mode to measure a number of points of variation in a large area.
Stake Out
The Guide Light function will navigate the prism operator to move to the stake out line quickly so that stake out operation can be done effectively.
Elevation Stake
Staking out with 3D coordinates, eliminates the need to set up TS on the straight line for all elevation stakes.
Boundary and Cadastral Survey
By using the Area function, you can calculate the area easily. Also, you can determine the center point of the column such as electric pole, which cannot be directly measured, by using offset calculation.
Coordinate Measurement
With coordinate measurement, you can manage 3D coordinate data so that various calculations such as Road, Layout and more can be determined. 3D coordinate data management can improve the productivity drastically.
Topographic Survey
The trigger key, or measuring distance key, helps you perform topography quickly while continuously viewing through the telescope. Also, the long distance measuring range reduces the number of the instrument changes for more efficient working time.
Improve Topography and Stake Out, with features to achieve faster and more efficient workflows
IoT Support System – Connect the Site and the Office
TSshield IoT Support System
- Remotely update the firmware via the internet
- Improves asset management by checking TS operating time
- Remote Lock secures the instrument from theft.
- Monitor TS heath status to enable quick reaction against any functionality issues
Superior Basic Feature will Expand Your Application
Strong Environmental Spec
The IP66 rating ensures durability for most any rough job site temperatures and conditions.
Long Hours Operation
One battery lasts up to 28 hours, or about four days of normal operation time.
Bright Illumination Key for Nighttime Work
Key buttons are illuminated to minimize mistakes.
Reliable Large Volume Memory
Internal memory has 50,000 points to record.
USB memory can be used up to 32GB.
Japan Quality Products
We perform the tough environmental tests to ensure long-term operation even under the rough site environments. Sokkia iM 100 Series total stations are thoroughly inspected with dust-proof and water-proof test chambers.
In addition, the various tests against vibration, drop, temperature, and humidity were successfully passed to achieve the best environmental spec. Also, the measuring distance accuracy test on base line and the instrument leveling and angle accuracy test and adjustment by collimator system ensure your satisfaction on iM Series product quality.
Sokkia Total Station (Model FX-201
Sokkia’s Latest Development in Sokkia FX Series is Sokkia FX-201 an instrument which has Sokkia’s world known software Magnet (Modern & Intuitive) Reflectorless Measurement upto 1000 Mtrs (In good conditions)
Sokkia FX-201 Total Station is the latest development from Sokkia (Japan make), having a high performance EDM which measures distances upto 1000 meters reflectorless and upto 6000 meters with Single Prism under good weather conditions.
The FX-201 is having high speed measurement to take measurements in less than 1 second time and having accurate results upto. (1.5 mm + 2 ppm) X D, which is one of its kind in any windows series Total Stations.
Leica Total Station (Model TS-07)
Work faster: Measure more points per day due to faster measurement and stakeout procedures (endless drives, trigger key, drives on both sides, pinpoint EDM and more), supported by our comprehensive and user-friendly Leica FlexField software.
Use it trouble-free: Increase productivity and minimise downtime by relying on instruments that simply work and come with a global service and support network.
Choose products that are built to last: FlexLine operates with the same high level of quality even after years of use under harsh conditions (like mud, dust, blowing rain, extreme heat and cold).
Control your investment: Reliability, speed and accuracy ensure a lower investment over the product lifetime and a higher resell value.
Save time with AutoHeight: Measure, read and set the instrument height automatically with this revolutionary feature in the FlexLine TS07 (optional). Errors are minimised and the setup process onsite is faster.
| Model Name/Number | TS07 |
| Brand | Leica FlexLine |
| Usage/Application | Survey |
| Distance Measurement | 1.5 m to 3.500 m |
| Display Resolution | 0.1'' (0.1 mgon) |
| Accuracy Hz and V | 1'' / 2'' / 3'' / 5'' / 7" |
| Compensator Setting Accuracy | 0.5'' / 1''/ 1.5'' / 2'' |
| Compensator Range | +/- 3.78' (+/- 0.07 gon) |
| Electronic Level Resolution | 2" |
| Humidity | 95% |
| IP Protection | IP66 |
| Working Temperature Range | -20 DegreeC to +50 DegreeC |
| Wavelength | 617 nm / 593 nm |
Leica Total Station (Model TS-01)
The TS01 is an entry-level manual total station, created to help you master surveying, layout and mapping projects. It will prove itself in the field and immediately become a valuable member of your team. Laser radiation, avoid direct eye exposure. Class 3R laser product in accordance with IEC 60825-1:2014.
| Model Name/Number | TS01 |
| Magnification | 28X |
| Distance Measurement | 3 km |
| Resolving Power | 3.5 inch |
| Number of Prism | Single |
| Angle Measurement Accuracy | 5 second |
| Material | Aluminum |
| Minimum Focus | 1.5m |
| Battery Backup | 24 hrs |
| Data Storage | 50000 points |
| Usage/Application | Construction, Mining, Surveying |
| Brand | Leica |
SOKKIA AUtolevl b40a
The Sokkia B40A is a high-precision automatic level, also known as a dumpy level, used for surveying and leveling. It features an automatic compensator that ensures accurate and stable line of sight, even in challenging conditions like vibration or temperature changes. The B40A is designed for durability and reliability, with a robust, dust and water-resistant (IPX6) body.
| Model | Sokkia B40A |
| Telescope | |
| Length | 214mm (8.42in.) |
| Magnification | 24x |
| Objective aperture | 32mm (1.26 in.) |
| Resolving Power | 4″ |
| Field of View (at 100m/328ft.) | 1°25’ (2.5m / 8.2ft.) |
| Minimum focus | • 0.2m (7.9 in.) from end of telescope • 0.3m (1ft.) from instrument center |
| Image | Erect |
| Stadia Constant | 0 |
| Stadia Ratio | 100 |
| Focusing Knob | 1-speed |
| Sighting Aid | Gun Sight |
| Accuracy (1km double run leveling) | |
| Without Micrometer | 2.0mm (0.08 in.) |
| With Micrometer | n/a |

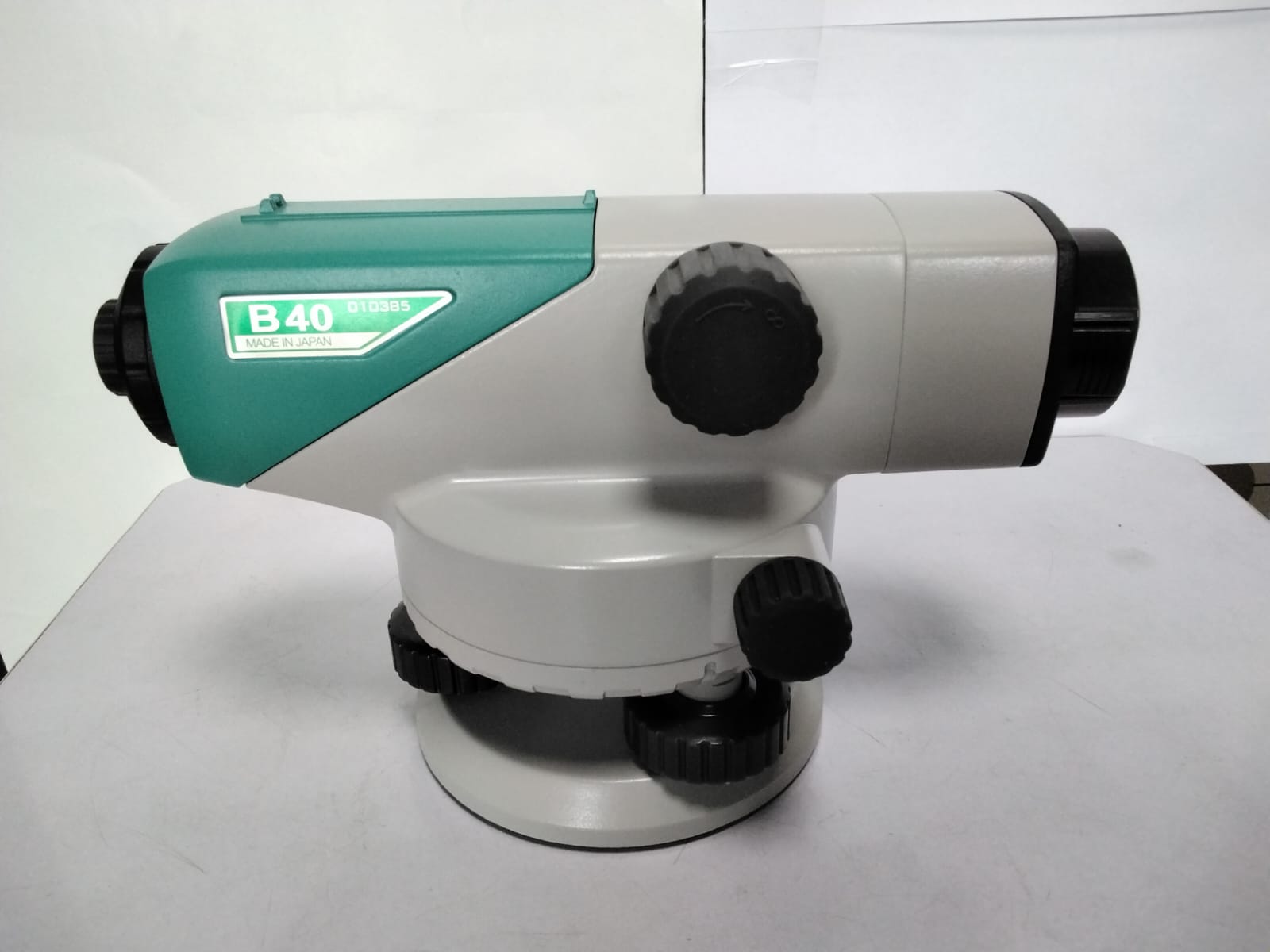

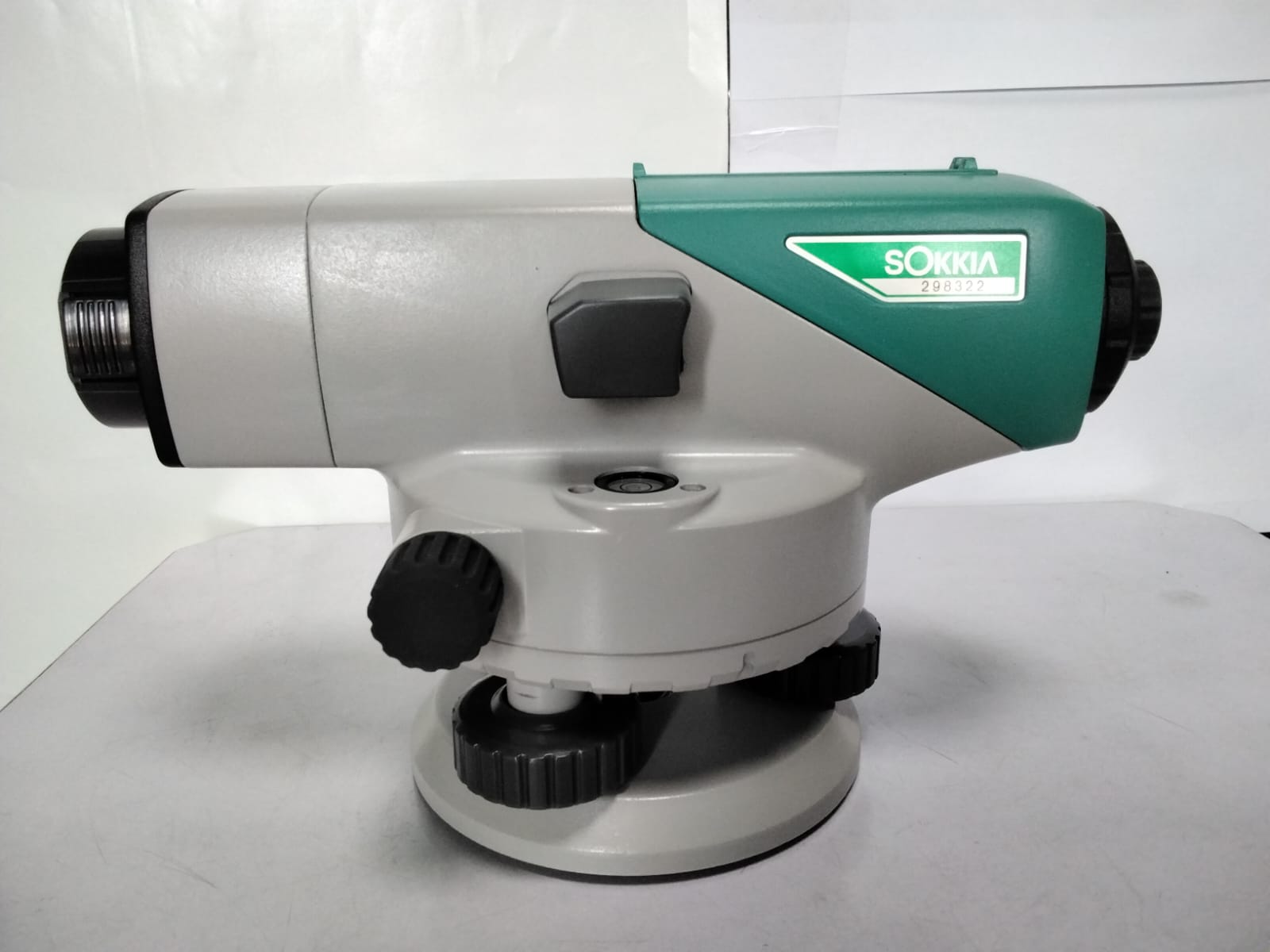

SOKKIA AUtolevl b40
The Sokkia B40 Auto Level is a surveying instrument used for establishing and verifying horizontal points. It is a compact, rugged level with a precise and reliable compensator, ensuring accurate readings even in challenging environments. It features a superior telescope with a two-speed focus knob and a short minimum focus distance of 20cm, facilitating work in tight spaces.
| Model | Sokkia B40 |
| Telescope | |
| Length | 214mm (8.42in.) |
| Magnification | 24x |
| Objective aperture | 32mm (1.26 in.) |
| Resolving Power | 4″ |
| Field of View (at 100m/328ft.) | 1°25’ (2.5m / 8.2ft.) |
| Minimum focus | • 0.2m (7.9 in.) from end of telescope • 0.3m (1ft.) from instrument center |
| Image | Erect |
| Stadia Constant | 0 |
| Stadia Ratio | 100 |
| Focusing Knob | 1-speed |
| Sighting Aid | Gun Sight |
| Accuracy (1km double run leveling) | |
| Without Micrometer | 2.0mm (0.08 in.) |
| With Micrometer | n/a |
