Sokkia iM 55 Total Station
The Sokkia iM 55 Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth® capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.
Sokkia iM-55 Reflectorless Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.
- 5″ Accuracy, Fast distance measurement of 0.9s..
- Reflectorless operation from 30cm to 500m.
- 50,000-point internal memory
- Upto 32GB USB Pen Drive Support
- Coaxial EDM beam and laser-ponter provide fast and accurate aiming.
- Ensures accuracy even with reflective sheets.
- IP66 dust-proof waterproof rating.
- Rugged metal chassis and heavy duty handle.
- Standard usage temperature range -20° to 60°C.

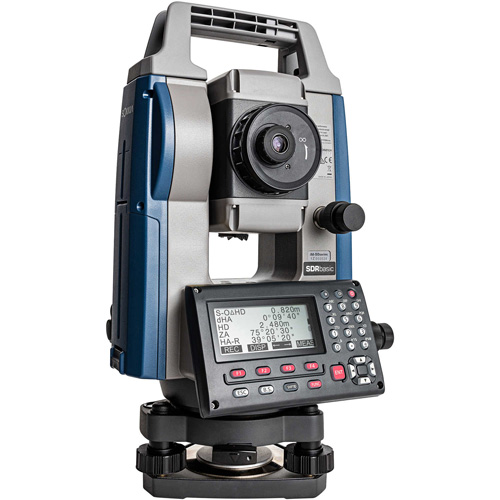

Sokkia iM 52 Total Station
Product Introduction
The Sokkia iM 52 Electronic Total Station is the perfect entry-level site layout and survey tool offering reliability and flexibility without sacrificing cost or functionality. The Sokkia iM 50 Series Total Station’s sleek design is built tough, with a water and dust-proof IP66 rating, integrated Bluetooth capability and an internal antenna, enabling you to deliver measurements cable-free to your data controller, streamlining your equipment weight and workflow.
Sokkia iM-52 Total Station is also armed with a top line EDM, generous internal memory storage, and SDRbasic on-board software so you have everything you need to get the job done out in the field.
2″ Accuracy, Fast distance measurement of 0.9s.
Dual-side Alphanumeric Keyboard Display.
Reflectorless operation from 30cm to 500m.
50,000-point internal memory
Upto 32GB USB Pen Drive Support
Coaxial EDM beam and laser-ponter provide fast and accurate aiming.
Ensures accuracy even with reflective sheets.
IP66 dust-proof waterproof rating.
Rugged metal chassis and heavy duty handle.
Standard usage temperature range -20° to 60°C.
Sokkia iM 101 Total Station
Product Introduction:
Sokkia IM 101 Reflectorless Total Station with inbuilt Guide Light Unit &Dual Side Display,having 1” Least Count & 1” accuracy. Capable of measuring a distance of approx. 1,000 mtrs. inreflectorless mode and approx. 6,000 mts. under good weather conditions with single prism. Guide light unit, single side backlight display with alpha numeric key board, Having internal memory of approx. 50000 points
Specifications:
Accuracy: 1" measurement accuracy.
Reflectorless Range: Up to 1,000 meters.
Prism Range: Up to 6,000 meters.
EDM: Fast and accurate distance measurement with a coaxial EDM beam.
Memory: 50,000 points of internal memory, with USB support up to 32GB.
Battery Life: Up to 28 hours in Eco mode.
Environmental Rating: IP66, making it dustproof and water-resistant.
Bluetooth: Integrated Bluetooth for data transfer.
Dual-axis Compensation: For stable measurements even on uneven terrain.
Software: Onboard software for various surveying tasks.
Keyboards and Display: Double-sided backlit keyboard and a single graphic display for viewing measurements.
Applications: Suitable for site layout, topographic surveys, and construction projects.
Sokkia IM 105 Total Station
With Sokkia IM-105 Total Station you get fast, accurate, and powerful EDM technology, best-in-class accuracy up to 6,000 meter with a prism and up to 1000 meter in reflectorless mode, and a battery life of up to 28 hours. The iM-100 series intelligent measurement station is ready to be your hardest worker out in the field.
- 5″ Accuracy
- Construction and Survey Application Software On Board
- Best-in-Class Measuring Distance Feature
- Dual Side Display Control Panel.
- Reflectorless operation from 0.3m to 1000m.
- IP66 – Strong Environmental Specification against Tough Sites
- Integrated Bluetooth® technology
- Up to 28 hours of battery life in Eco mode
- Key buttons are illuminated to minimze mistakes.
- Advanced security and maintainance with TSshield™
- Internal memory has 50,000 points to record
Sokkia Total Station (Model FX-201
Sokkia’s Latest Development in Sokkia FX Series is Sokkia FX-201 an instrument which has Sokkia’s world known software Magnet (Modern & Intuitive) Reflectorless Measurement upto 1000 Mtrs (In good conditions)
Sokkia FX-201 Total Station is the latest development from Sokkia (Japan make), having a high performance EDM which measures distances upto 1000 meters reflectorless and upto 6000 meters with Single Prism under good weather conditions.
The FX-201 is having high speed measurement to take measurements in less than 1 second time and having accurate results upto. (1.5 mm + 2 ppm) X D, which is one of its kind in any windows series Total Stations.
topcon Total Station gm series
Topcon GM 55 Total station with 5 sec Accuracy with 500 mts reflextorless measuring rand and LCD dispaly with Alphanumerical keyboard with backlight .
It features a reflectorless EDM (Electronic Distance Measurement) system, capable of measuring up to 500 meters in reflectorless mode and 4,000 meters with a prism. The GM-55 also boasts integrated Bluetooth, an internal antenna, and a 50,000-point internal memory
Large Internal Memory: A 50,000-point internal memory provides ample space for data storage.
Rugged and Waterproof: Built to withstand harsh field conditions, with an IP66 rating for dust and water protection.
Accurate Angle Measurement: Offers 5" accuracy in angular measurements.
Fast Distance Measurement: Distance measurements can be achieved in as little as 0.9 seconds regardless of the target object.
Minimizing Errors: Features like a smaller EDM beam spot size and improved collimation help reduce measurement errors.
Dependable at Shallow Incidence Angles: The GM-55 can handle accurate measurements even at shallow angles
LEICA TOTAL STATION (MODEL TS07 1")
The Leica FlexLine TS07 high-quality, manual total station is based on a proven product concept that has been revolutionising the world of measurement and survey for nearly 200 years. The instrument is equipped with a comprehensive application-based software package – Leica FlexField software – that enables most survey and stakeout tasks to be carried out easily and efficiently. The new FlexLine manual total stations work reliably and deliver accurate results even in harsh environments.
1.5m to 3500m Single Prism Range
Prism GPR1 (Long Range mode) > 10.000 m
R500 EDM – 500m Reflectorless & R1000 EDM – 1000m Reflectorless Optional
2 GB Internal Memory Approx 100,000 Points
USB Memory Stick & SD Memory Card support
3.5″, 320 x 240px QVGA, color, touch and full alpha numeric keyboard
Quadruple Axis Compensation, IP66 Protection, Laser Plummet for Centering
LEICA TOTAL STATION (MODEL TS01 5")
The Leica TS01 total station empowers you to carry out measurement tasks with ease and simplicity. The Leica Flexline TS 01 is an entry-level manual total station, created to help you master surveying, layout and mapping projects. It will prove itself in the field and immediately become a valuable member of your team.
Fast setup and measurements: increase your productivity with built-in sensors like an electronic dual axis compensator, a laser plummet, intuitive field software and short keys for quick menu access.
Your all-in-one package: The TS01 comes with Leica Geosystems accessories, such as a long-operating battery, a charger and a tribrach tested to perform best – when every detail counts.
Benefit from Leica Geosystems service and support: Make use of the well-established Leica Geosystems’ service and support network.
5″ angular accuracy, Laser Plummet
Internal Memory Approx 50,000 Points, USB Memory Support
